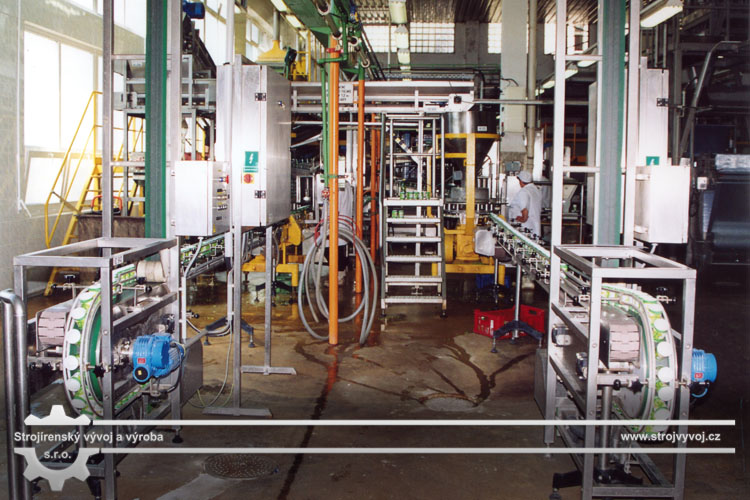

Vertical magnetic conveyors

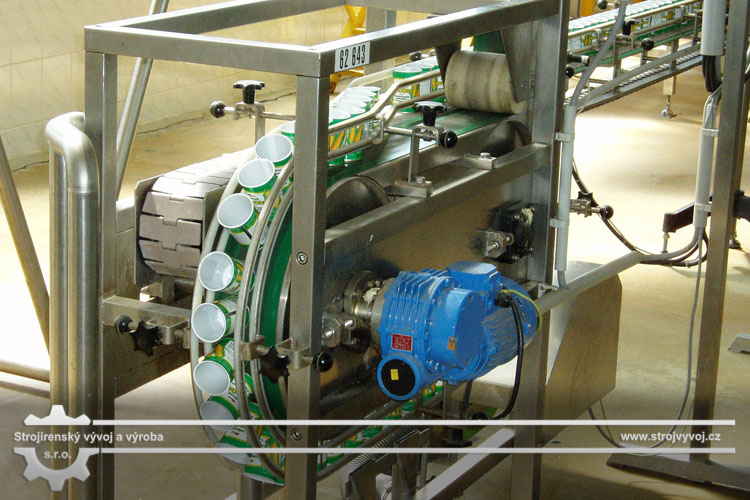

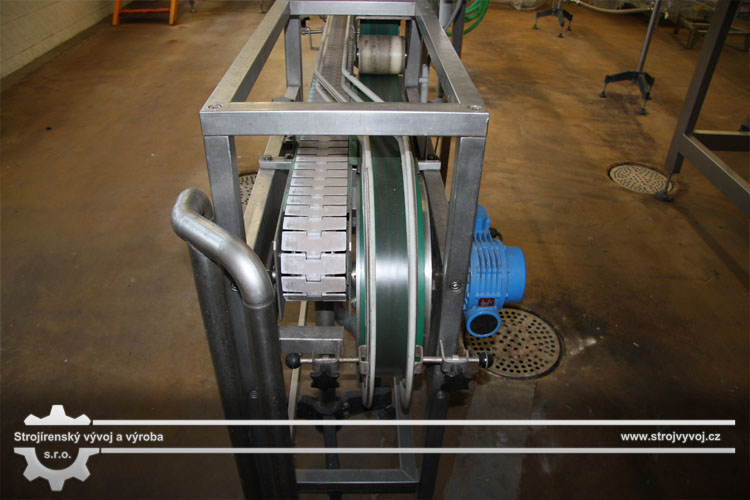

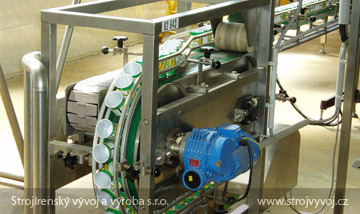

Vertical magnetic conveyors are designed for the transport of empty metal containers made of ferromagnetic material. They are used in facilities where the production plant is situated on a different level than the container storage. Cans can be transported between individual floors in both directions. The device can be supplemented with a can blowing device, using pressurized air or water.   The conveyor is driven by a worm gear with an electric motor, controlled by a frequency changer. The conveyor shafts are embedded in plastic bearings. The vertical conveyor run and the impellers are equipped with permanent magnets. The conveyors are fitted with an endless transport belt.

The device is made of stainless steel structure (quality according to DIN 1.4301), including the connecting material of quality A2 and plastic components. All materials used have been certified for direct contact with food.

Technical parameters of the stations

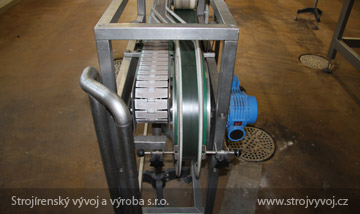

Lower station

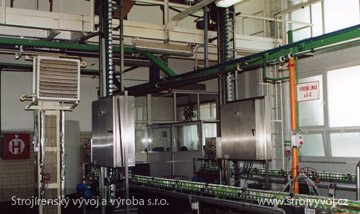

Upper station

Technical parameters for inquiries

• Transport height
• Carrying capacity
• Dimensions of the metal container transported
• Temperature load on belt
